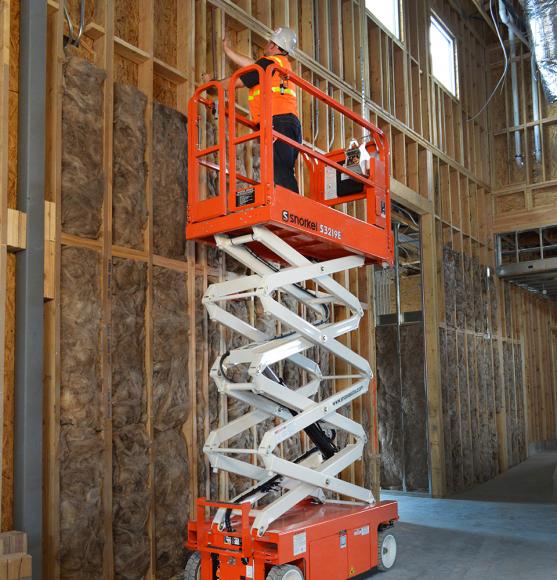

Scissor Lift 19 ft.
Please Call for Pricing
Must be used on a solid paved surface.
Item Details
Max. working height:25 ft
Max. platform height:19 ft
Platform size (stowed)
28.25 in x 63.75 in
Platform size (extended)
28.25 in x 99.75 in
Deck extension length 36 in
Overall length (with step): 70.4 in
Overall length (without step): 68.3 in
Overall width: 32 in
Stowed height: 83 in
Ground clearance (stowed): 2.63 in
Ground clearance (elevated): .75 in
Platform capacity (SWL): 550 lbs
Max. drive height: 19 ft
Max. wind speed: 28 mph
Max. drive speed (elevated): 0.4 mph
Max. drive speed (stowed): 2.0 mph
Raise / lower time: 20 / 36 sec
Gradeability: 25%
Inside turning radius: 4 in
Outside turning radius: 64.25 in
Tires: 12 x 4 non-marking rubber
Controls
Proportional
Drive system
2 wheel drive
Power source
24V DC battery electric
Charger: 90 - 240V, 25 amp
Weight: 2,900 lbs
